Novastar DH7508-S Video Receiving Card Price in Bangladesh

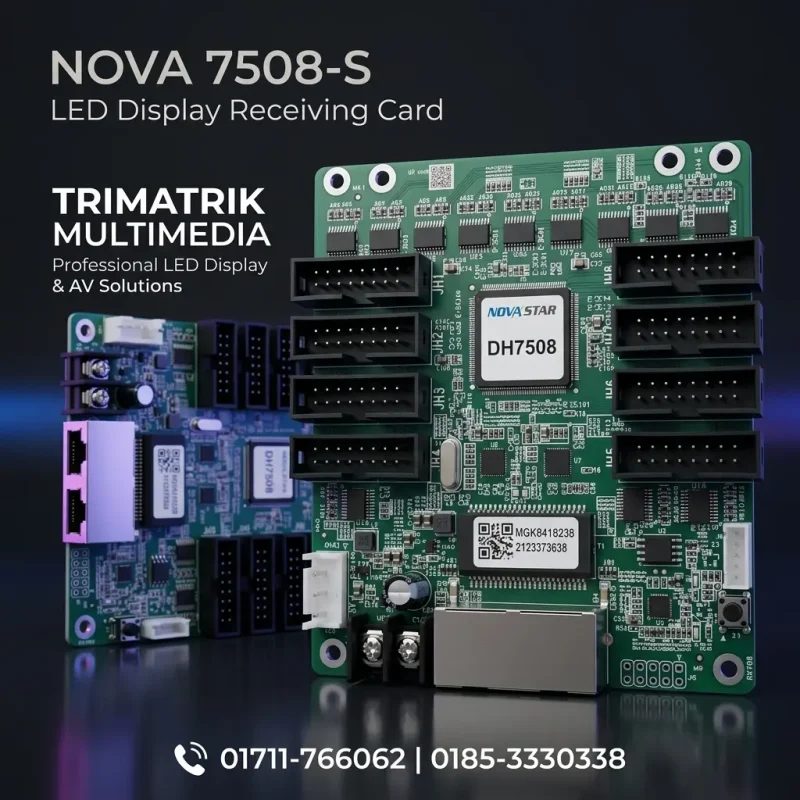

Novastar DH7508-S Video Receiving Card

Call us for Product Stock and Update Price
  • Up to 512 × 512 pixels per card with supported PWM driver ICs
  • 8 HUB75E interfaces
  • Up to 16 groups of parallel RGB data
  • Pixel-level brightness & chroma calibration
  • RGB independent gamma adjustment
  • 3D support
  • 90° image rotation
  • Loop backup & bit-error detection
  • Compact 95.5 × 109.1 mm design
Categories: ,
ParameterSpecification
ModelNovaStar DH7508-S
Product TypeLED Display Receiving Card
Maximum Load – PWM Driver IC512 × 512 pixels @ 60Hz
Maximum Load – Common Driver IC512 × 384 pixels @ 60Hz
HUB75E Outputs8 × standard HUB75E
Parallel RGB DataUp to 16 groups
Ethernet PortsGigabit Ethernet input/output
Brightness CalibrationSupported
Chroma CalibrationSupported
Seam CorrectionSupported, including mobile-phone seam correction
Dark/Bright Line AdjustmentSupported
RGB Independent GammaSupported
3D FunctionSupported
Image Rotation0° / 90° / 180° / 270°
Mapping FunctionSupported
Loop BackupSupported
Bit Error DetectionSupported
Firmware ReadbackSupported
Configuration Parameter ReadbackSupported
Input VoltageDC 3.8–5.5V
Rated Current0.5A
Rated Power Consumption2.5W
Operating Temperature-20°C to +70°C
Operating Humidity10–90% RH, non-condensing
Storage Temperature-25°C to +125°C
Storage Humidity0–95% RH, non-condensing
Dimensions95.5 × 109.1 × 17.9 mm
Net Weight72.4 g
CertificationsRoHS, EMC Class A
