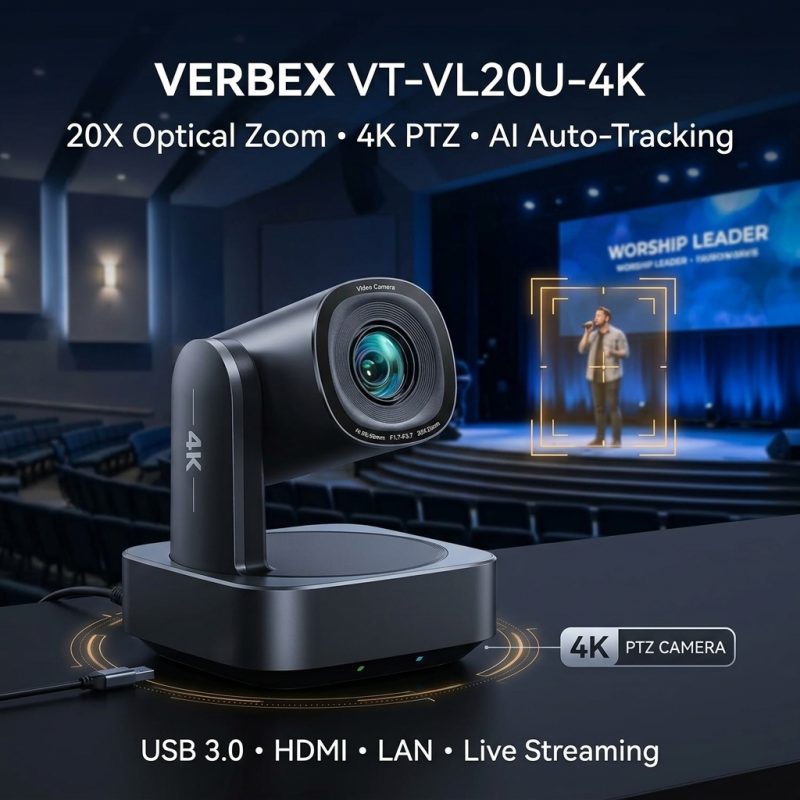

VERBEX VT-VL20U-4K 20X Optical Zoom PTZ Camera AI Auto-Tracking with USB3.0 HDMI LAN for Corporate Office, University, Worship Live Streaming Video Conference Camera Price in Bangladesh

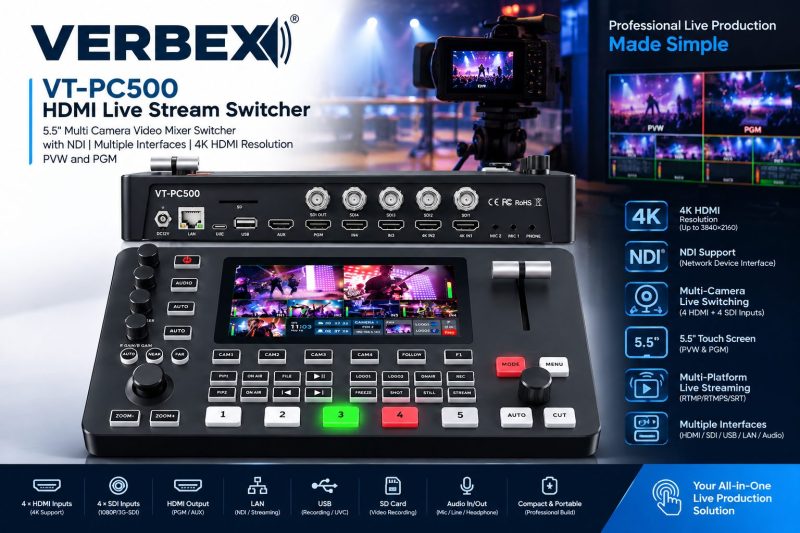

VERBEX VT-PC500 HDMI Live Stream Switcher

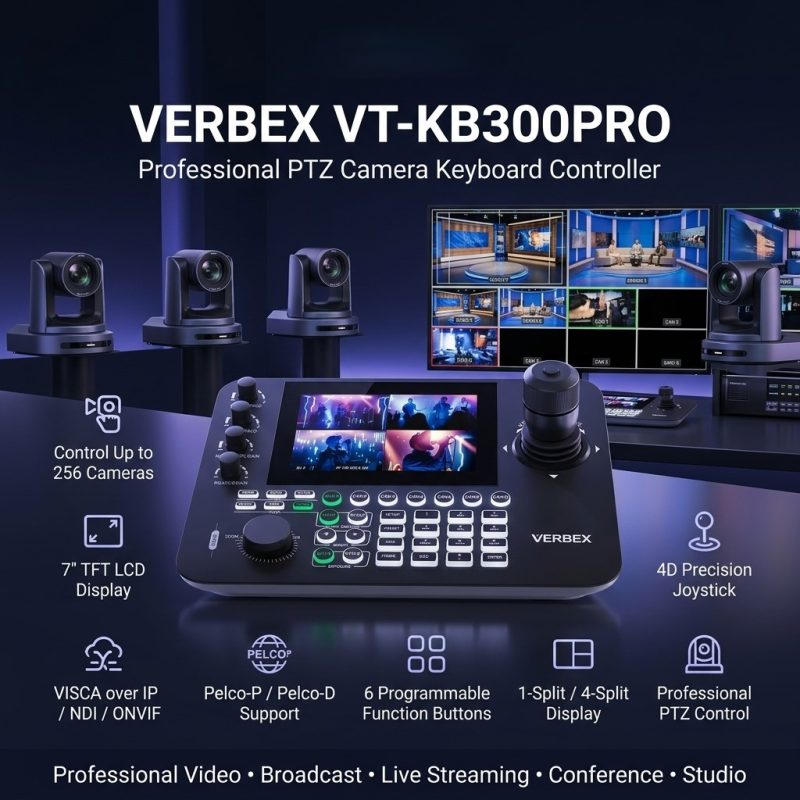

VERBEX VT-KB300PRO Video Conference PTZ Keyboard Controller Price in Bangladesh

VERBEX 4K NDI PTZ 4-Camera Broadcast Bundle: VT-VHD620A-NDI Cameras, 20X Zoom, VT-PC500 Mixer & PoE Switch for Corporate & Studio Live Production Price in Bangladesh

Call us for Product Stock and Update Price

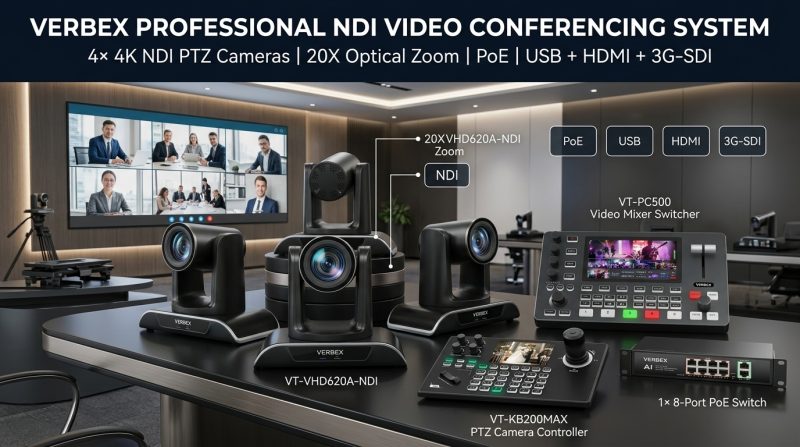

The VERBEX 4-Camera NDI PTZ Video Conferencing System is a complete, broadcast-grade live production suite designed for corporate conference rooms, auditoriums, and live streaming. Featuring four VT-VHD620A-NDI 4K PTZ cameras with 20X optical zoom, the VT-PC500 video mixer switcher, the VT-KB200MAX joystick controller, and a dedicated 8-port PoE switch, this all-in-one setup delivers seamless multi-camera control, ultra-low latency NDI video workflows, and flexible USB, HDMI, and 3G-SDI connectivity.

Key Highlights:

  • Complete System Setup: 4× NDI PTZ Cameras, Video Switcher, PTZ Controller & 8-Port PoE Switch

  • Ultra-Clear Imaging: 20X Optical Zoom with 4K NDI video stream integration

  • Flexible Connectivity: PoE, NDI, USB, HDMI, and 3G-SDI support

  • Effortless Multi-Camera Production: Dedicated hardware controller and video mixer for smooth live operations

Category:

4 Video Conference System Camera Bundle Package Price in Bangladesh

Model No.
VT-VHD620A-4K-NDI
Camera
Sensor
1/2.8”
Effective Pixels
8.29MP
Video Signals
HDMI：1080P60, 1080P59.94, 1080P50, 1080P30, 1080P29.97, 1080P25, 1080I60, 1080I59.94, 1080I50, 720P60, 720P59.94, 720P50
3G-SDI: 1080P60, 1080P59.94, 1080P50, 1080P30, 1080P29.97, 1080P25, 1080I60, 1080I59.94, 1080I50, 720P60, 720P59.94, 720P50
USB3.0：
H.264：max to 4kP@30fps
MJPG：max to 1080P@60fps
YUY2：max to 1080P@60fps
Zoom
20x optical zoom
Lens
f=4.6mm ~ 92mm
Aperture
F1.8 ~ F3.6
Horizontal Angle
62.3° ~ 3.46°
Vertical Angle
36.1° ~ 1.92°
Diagonal Angle
69.5° ~ 3.86°
AI Support
Yes
AI Mode
Auto Framing/Presenter Tracking
Digital Zoom
8X
Video Output
USB 3.0, HDMI, RJ45, SDI
Signal Standard
NTSC/PAL
Control Interface
RS232, RS485, USB, NET
Shutter
1/30s ~ 1/10000s
White Balance
Auto, Indoor, Outdoor, One Push, Manual, VAR
Backlight Compensation
Support
Digital Noise Reduction
2D&3D Digital Noise Reduction
Baud Rate
2400/4800/9600/19200/38400
Control Protocol
VISCA, Pelco-D,Pelco-P
USB Protocol
UVC 1.1
Minimal Illumination
0.5 Lux @ (F1.8, AGC ON)
SNR
≥50dB
Horizontal Rotation
350° (±175°) 0.1°/s～100°/s
Vertical Rotation
180° (±90°)0.1°/s～80°s
H & V Flip
Support
Image Freeze
Support
PoE
Support
Number of Preset
255
Preset Accuracy
0.1°
IPC Features
Video Encoding Format
H.264/H.265/MJPG
Video Stream
Main Stream, Sub Stream
Main Stream Resolution
1920×1080, 1280×720, 1024×576 , 940×540,etc.
Sub Stream Resolution
1280×720, 1024×576, 720×480, 720×408,etc.
Video Bit Rate
32Kbps ~ 102400Kbps
Bit Rate Type
Variable Rate, Fixed Rate
Frame Rate
50Hz: 1fps ~ 50fps, 60Hz: 1fps ~ 60fps
Audio Compression
AAC
Audio Bit Rate
96Kbps, 128Kbps, 256Kbps
Network Protocol
NDI |HX2(Optional),SRT,TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Visca Over IP, Multicast, etc.
Input/Output Interface
HD Output
1xHDMI
1x3G-SDI: BNC type, 800mVp-p, 75Ω, Along to SMPTE 424M standard
LAN
1xRJ45:10M/100M Ethernet Interface,PoE（802.3af）
Audio Interface
1-ch: 3.5mm Audio Interface, Line In
1-ch: 3.5mm Audio Interface, Line Out
USB
1xUSB3.0: Type B female jack
Communication Interface
1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P
1xRS232 Out: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA network use only
1xRS485: 2pin Phoenix Port, Max Distance: 1200m, Protocol: VISCA/Pelco-D/Pelco-P
Power Jack
JEITA type (DC IN 12V)
Generic Specification
Power Supply
DC 12V/2A
Power Consumption
24W(Max.)
Work Temperature
0℃ to 40°C
Work Humidity
20%～80% RH
Store Temperature
-20°C to 60°C
Store Humidity
20%～90% RH
Product Size
247.1*152*169.6mm/285*217*197mm(before / after packing)
Product Weight
1.37kg/2.45kg (net / gross weight)
VT-PC500 Broadcast Control Keyboard Product Specification Sheet
Screen
5.5 inch
Resolution
1920*1080
Decoding Capability
Supports H.264
Max. Supports H.264 1080p60fps
Protocols
SRT, RTMP, RTSP, VISCA, NDI
Features
Integrated 8-choose-4 channel input from 4x SDI & 4x HDMI
Supports USB-A USB 3.0 lossless capture for more authentic image reproduction
Supports 4K input, allowing flexible integration of multiple video sources
Supports NDI input, low-latency video over a single network cable
Supports UVC cameras and remote camera input for versatile composite input
Built-in media player; recorded videos can be played directly onboard and used as an input source
Supports PGM output and MV output with variable channels
Supports onboard recording to USB flash drives and portable HDDs
Supports screen rotation (landscape/portrait) to adapt to various scenarios
Built-in web server, supports control via web browser on any platform
Connect via Ethernet, input stream keys for dual-stream pushing
System
Supports language settings; Supports network upgrade; Supports static MAC address
I/O Configuration
Input
3G-SDI *4
SDI 1080P Input Interface
HDMI 2.0 *2
HDMI 4K Input Interface
HDMI 1.3 *2
HDMI 1080P Input Interface
USB 2.0 *1 (USB Type-A)
Video Playback / Image Loading / UVC Input
Output
3G-SDI *1
PGM Output
HDMI 1.3 *1
PGM Output
HDMI 1.3 *1
PGM / MV Multiplexed Output
USB 3.0 *1 (USB Type-C)
UVC Output Interface
Audio
MIC IN 2x 3.5mm Audio Interface
Compatible with MIC/LINE Stereo Input
PHONES 1x 3.5mm Audio Interface
Monitor Output
Control
LAN *1
Network Control / Network Streaming
PTZ Camera Control
Input Resolution
HDMI
SMPTE: 720p@50/60 | 1080i@50 | 1080p@24/30/50/60
VESA: 1024×768@60 | 1280×768@60 | 1280×800@60
1280×1024@60 | 1360×768@60 | 1366×768@60
1440×900@60 | 1600×1050@60 | 1680×1050@60
1920×1080@23.98/24/25/29.97/30/50/59.94/60
(IN1/IN2) 3840×2160@30/50/60
Output Resolution
HDMI
SMPTE:  1080p@24/25/30/48/50/60
USB 3.0
Video Streaming: 1080p@24/30/50/60
Storage
SD Card Slot
SD Card Recording
USB Port
USB Drive Recording
Performance
Video Sampling
YUV 4:4:4
System Latency
< 3 Frames
Audio Delay
0-500ms (0-30/25 frames)
Power
Input Power
12V / 2A
Constant Power
20W
Operating Environment
Operating Temperature
0°C ~ 70°C
Operating Humidity
10% ~ 85%
Weight
Net Weight
1.5kg
Gross Weight
2.1kg
Dimensions
Unit Dimensions
269.9mm * 166.4mm * 55.7mm
Product Name
PTZ joystick keyboard controller
Model No
VT-KB200pro
Chip
ssd202d
System
Linux
Max equipment
256
Decoding
H.265, H.264
Resolution
MAX 1080P for 1 channel: 1920*1080@30fps
Protocol
VISCA over IP, NDI Control, ONVIF, Pelco-P, Pelco-D, Sony VISCA Compatible
Camera Control
Exposure Selection: YES
White Balance: YES
Backlight Control: YES
Display status of WB, Iris, Gain, Shutter, Focus: YES
Focus Model Selection: YES
Auto Focus/Manual Focus: YES
User Interfaces
Display: LED
Speed Control: YES
Zoom Rocker: Yes
Joystick Zoom Ring: Yes
Programmable function buttons: 6
Joystick
4D
Output
RS422(Reserved), RS232(Development port), RJ45
Accessories
Knob, Silicone button
Beep
On/off
Display
TFT LCD 5 inches 720*1280
Max camera control
Max 256 with multiple protocols including NDI/IP
Power consumption
≤10W
POWER
DC12V-2A POE
Storage Condition
Work temperature
-10°C~55°C/14°F~131°F
Work humidity
20%~80% frostless
Storage temperature
-10°C~60°C/14°F~140°F
Storage humidity
0~90% frostless
Dimension(Beofore/After Package)
321*179*113mm/385*235*170mm
Net/Gross Weight
1.83kg/2.45kg
Product Name
8 Port Full Gigabit POE Switch(8+2)
Product Model
VT-POE8
DATA PIN
1/2+ 3/6- ,4/5+ 7/8-
Power Supply Type
Build In, 1/2+,3/6-
PoE Output Power
30W
Connector
8*1000mbps POE port,2*1000mbps Uplink port
Network Medium
Cat5 (UTP) or more
Technology
Network Standards
IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX
IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet
PoE power
30W per port(IEEE802.3af/at).
Wiring: Data & power provided over pairs 1/2 and 3/6 or 4/5 (+) and 7/8(-)
Processing types
Store-and-forward
Half-duplex back pressure and IEEE 802.3x full-duplex flow control
Address database Table Size
8K MAC address
Buffer memory
48Kb embedded memory per unit
Backboard Bandwidth
20Gpbs Full duplex
Network Latency
Less than 20us for 64 byte frames in store-and-forward mode for 100Mbps to 100Mbps transmission
Power
Input
AC 110-240V
PoE power consumption
30W per port(IEEE802.3af/at)
Overload current protection
Present
Mechanical
Casing
Metal
Installation
Wall mounting/ Desktop
Interface
LED Indicators
System: Power, PoE Maximum power
Per port: Link, Activity, Speed, PoE active, PoE error
Environment specification
Operating temperature
-10-55°C(32-104℉)
Storage temperature
-40-70°C(14-158℉)
Operating humidity
90% maximum relative humidity, non-condensing
Storage humidity
95% maximum relative humidity, non-condensing
Regulatory Approval
ISO
Manufactured in ISO9001 facility
Safety
CE/CCC/FCC
Warranty
2 Years
Dimensions
202*140*45mm (L*W*H)
Weight
N.W:0.9Kg G.W:1.1Kg
Package List
Package List
8 Port Full Gigabit POE Switch(8+2) *1
User Guide*1
Warranty Card*1
Power cable*1
